DIESEL ELECTRIC LOCOMOTIVEDC TRACTION MOTOR
DR46/09AZ Replaceable with GE*761A23

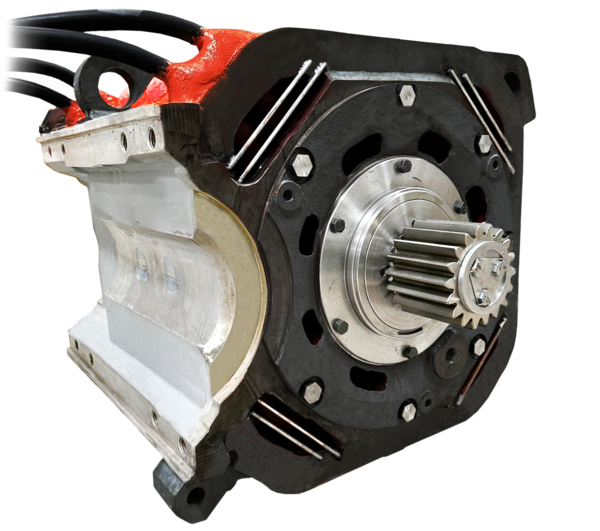

Traction Motor DR46/09AZ is a series wound, four pole, forced ventilated DC motor, suitable for standard gauge and metre gauge Diesel Electric Locomotives. This motor can also be used on medium power, BG Diesel Electric Locomotives.
Some of the salient features are:Fully fabricated magnet frame.
Arch bound commutator, dynamically seasoned, with L-shaped teflon ring protection.
Heat sealed Kapton film insulated armature conductors.
TIG welded armature.
Polyimide film (Kapton), mica paper and PTFE tape based insulation for armature and field coils.
Main field and compole coils bonded with poles for improved heat dissipation.
VPI of armature and field coils in solventless polyetherimide resin (Class 200) to obtain void free insulation.
TECHNICAL SPECIFICATIONS
| Technical Description | Continuous Rating |
|---|---|
| Power kW (HP) | 279 (374) |
| Voltage (V) | 575 |
| Current (A) | 551 |
| Speed (RPM) | 970 |
| Insulation Class | Class 200 |
| Ventilation | Forced |
| Air Quantity | 57 cu.m/min. |
| Standard Application | IEC 60349 |
| Weight with Accessories | 1961 kg |
Note: *GE is a trade designator of General Electric, Inc. DRESPL is not an authorized GE distributor, nor is otherwise associated or affiliated with GE. However, DRESPL does represent that its replacement parts, components, subsystems and services are compatible with and usable on GE locomotives.
